了解x16插槽和x8插槽的区别

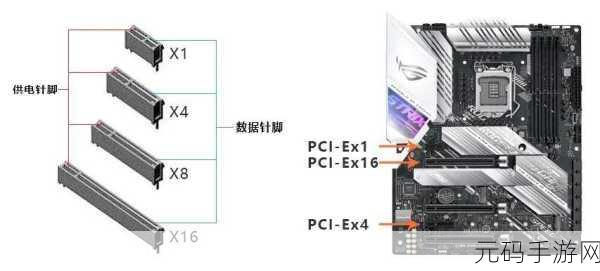

x16和x8是常见的PCIe（Peripheral Component Interconnect Express）插槽类型，它们主要用于连接显卡、存储设备以及其他扩展卡。两者之间最明显的差异在于带宽，x16提供更高的数据传输速率，而x8则相对较低。此外，不同类型的主板设计了不同数量与配置的这些插槽，影响着计算机组件之间的信息流动。
为何需要将x16转为x8
将一个原本支持 x16 的 PCIe 插槽转换成 x8 可能出于多种考虑。例如，在某些特定情况下，一台服务器或工作站上安装多个显卡时，如果所有显卡都占用完整资源，那么变换为 x8 可以平衡负载或释放总线带宽。而一些专业应用程序，如数据科学分析或者深度学习训练，对硬件要求极其严格，这样做可以确保各个组件以最佳效率运行。
准备所需工具及材料
为了实现这个转换，需要一些基本的工具和材料。通常包括：小型螺丝刀、一把剪切钳、电烙铁，以及适合该操作的一块电路板。这些工具能够帮助用户拆解并重新布置现有硬件，以便顺利完成从 x16 到 x8 的改装过程。
具体步骤详解
1. 拆卸操作：
首先，应关闭电脑并拔掉电源。在打开机箱后，小心地移除要修改的扩展卡，可以通过拧下固定螺丝来进行，然后轻轻拿出来。从主板上的 BIOS 设置里确认当前使用的是哪个 PCIe 通道，并记录下来，以防出现意外情况后参考。
2. 修改电路设计：
Circuit board modification is the crucial step for converting an x16 slot to an x8 one. This involves cutting specific traces on the PCB, which can usually be found in hardware manuals or online forums dedicated to modding expansion slots. After carefully removing unwanted connections, soldering new wires may also be necessary to ensure proper communication and power distribution within the modified setup.
(注：此处涉及到PCB线路裁剪及焊接等复杂技术，请务必谨慎操作，并在必要时寻求专业人士协助！)
PCEi Slot Compatibility Check
The next step entails ensuring that your newly configured card will still work with your motherboard’s architecture after it has been altered from a full-length design (like X16) down to half of its bandwidth capacity (X8). Checking compatibility includes identifying supported configurations outlined by either manufacturer specifications or community-driven resources such as user reviews and technical blogs.
X-Block Installation Testing:
- If compatible, reinsert into respective slot before securing back everything inside casing correctly without excessive force causing connection issues;
- This might entail testing via system boot-up while monitoring software feedback through tools like GPU-Z/CPU-Z along real-time benchmarking utilities consistent across different scenarios until you confirm operational stability! ;
Troubleshooting Common Issues
- A blank screen upon rebooting could indicate improper seating within physical connectors - double-check alignment meticulously! ,
- Loud fan sounds suggest intensive operation under load since performance metrics have changed significantly depending case usage context alongside other peripherals being harnessed simultaneously working together efficiently! ;
- If encountering driver errors afterward attempts made return original state settings temporarily revert any adjustments done during modifications process ahead restoring clearer paths troubleshooting later." ;
